LinearFlow Facade Dynamic White

LinearFlow Facade Dynamic White

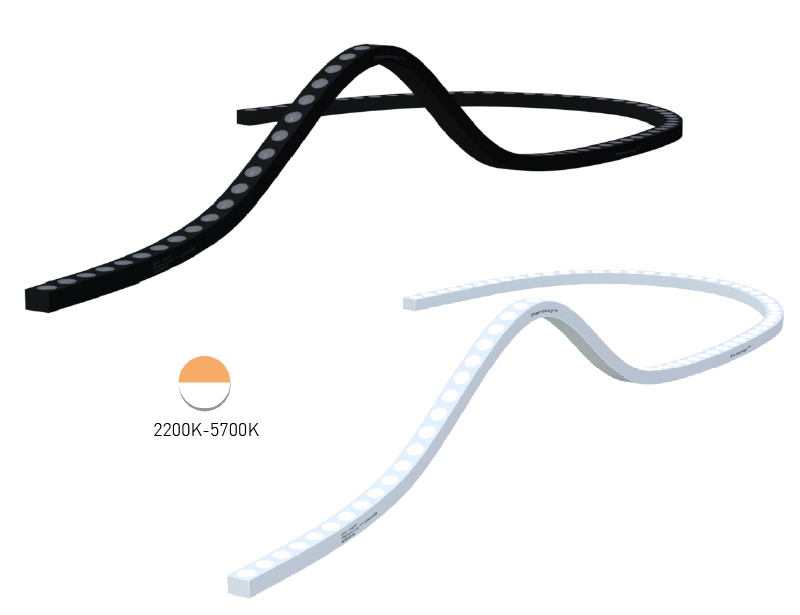

LINEARFLOW FACADE DYNAMIC WHITE is a flexible linear lighting solution featuring tunable white LEDs that seamlessly blend warm and cool white light, allowing precise adjustment of colour temperature and intensity to create the desired architectural ambience.

Integrated precision lenses in a choice of angles deliver a focused beam distribution, making it ideal for façade wall washing and the illumination of architectural features. The flexible profile can be bent both vertically and horizontally, enabling it to follow curved surfaces and complex building geometries with ease.

Encased in a high-performance silicone jacket, the fixture offers excellent weather resistance, UV stability, and a wide operating temperature range, ensuring reliable performance in both
interior and exterior applications.

Categories: , , , , , , , , , ,

Description

Features

  • Product Type: Dual Flexible 35 x 25mm Linear Light with Dynamic White LEDs
  • IP Rating: IP68, suitable to be fully submersible
  • Bending Orientations: Vertical and Horizontal
  • General Product Code: 71311x3x
  • Light Source:Epistar SMD 3015 LEDs
  • Colour Options (CCT): 2700K – 6500K
  • Colour Rendering: 80+ CRI
  • LED Lifetime (LM-80): 50,000 Hours (70% Lumen Maintenance)
  • Luminous Output / Efficacy: Up to 1980 lm/m : Up to 82 lm/W
  • Warranty: Silicone = 5 years
  • Resistant to: Solvents, UV and Heat
  • Jacket Material: Silicone
  • LED Power Available: 24W
  • Profile lengths: Custom lengths from 250mm to 2000mm
  • Minimum bending diameter: Vertical – 300mm, Horizontal – 800mm
  • Supply Voltage: 24Vdc Constant Voltage
  • Power Supply: Remote Constant Voltage Power Supply with Dimmer options
  • Mounting: Rigid and Single Flex Aluminium Channel and Dual Flex Silicone Channels

LinearFlow Facade

Downloads

Full Specification Sheet

Driver Sheet

LinearFlow Facade Dynamic White product codes

7120133* – [LED Colour Code] – [Honeycomb Louvre] – [Beam angle] – W – [Length Code] – [Wire Code]

71201339-2765-1-1525-W-0500-D0B0

LINEARFLOW FACADE DYNAMIC WHITE IP68, Without Honeycomb Louvre, 15° x 25° Optic, White Silicone Outer Casing, Dual Bend, 24W/m LEDs, CRI 80+ 2700K-6500K at 500mm Cut Length, Single Ended Wiring with Injection Moulded End Caps.

END1 = IP68 Injection Moulded End Feed Cap with 0.3m Cable
END2 = IP68 Injection Moulded Dead End Cap with NO Cable

Total Length (+ End Caps) = 500mm, Light Emitting Surface Length = 500mm (2 x 250mm LED Modules),
Strip wattage = 12W ( 2 x 6 Module Power), Strip output = Up to 990lm.

Principle variants, see Specification Sheets for full details.

ARTICLE NUMBERDESCRIPTION
71201339LinearFlow Facade Dynamic White LED, Silicone casing, Dual bend, 24W/m

Product parameter codes

Length Code[0250] to [2000] .
LED Colour Code80+ CRI 2700K-6500K [2765]
Beam Angle12° [12], 25° [25], 15°x25° [1525], 15°x40° [1540], 15°x60° [1560]
Jacket ColourWhite [W], Black [B]
Wire Codesee spec. sheet for details

Accessories codes

(See Product Specification Sheet for additional details)

Dual Bend Anole Channel712091*5-XXXX
*White = 6
Black = 7
Lengths Available 55/205/475/1000
Serrated Rigid Aluminium H36 Channel71209121-XXXX Lengths Available 35/500/1000/2000
Serrated Rigid Aluminium H50 Channel71209124-XXXX Lengths Available 35/500/1000/2000
Flexible Serrated Aluminium
Horizontal Bending		71209131-XXXX
Lengths Available 500/1000
Flexible Serrated Aluminium
Vertical Bending		1209133-XXXX
Lengths Available 500/1000
Adjustable Mounting Bracket71209130
Bendable Aluminium Glare Shield
Horizontal Bend		71209140-XXXX
Lengths Available 1000/2000

Driver codes

(Example list, see Driver Sheet for full detail including fitting loading)

273-858-040LED Constant Voltage Power Supply 24Vdc 40W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-080LED Constant Voltage Power Supply 24Vdc 80W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-100LED Constant Voltage Power Supply 24Vdc 100W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-150LED Constant Voltage Power Supply 24Vdc 150W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-240LED Constant Voltage Power Supply 24Vdc 240W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-848LED Single Channel Dimmer 6A 6-24Vdc, DMX / 0-10V / 1-10V, with DMX in & out, 10V In & out.
205-057Rotary Potentiometer for 1-10V Controllers
205-029OTDALI DIM LED PWM DALI Dimmer interface 5A 12/24Vdc 50/120W
273-606-1LED Constant Voltage DALI Dimmer Single Channel 12/24V 8A twin output
273-606-2LED Constant Voltage DMX Dimmer Single Channel 12/24V 8A twin output
273-606-3LED Constant Voltage Analogue (0-10V) Dimmer Single Channel 12/24V 8A twin output
273-607-1LED Constant Voltage DALI Dimmer Two Channel 12/24V 8A two output
273-607-2LED Constant Voltage DMX Dimmer Two Channel 12/24V 8A two output
273-550LED Constant Voltage DALI & DMX Dimmer Four Channel 12/24V 24A four output (6A per output)
205-074LED Constant Voltage DMX Dimmer Four Channel 12/24V 16A four output (4A per output)
273-604-1LED Constant Voltage Integrated 100W PSU & DALI/DMX Dimmer Four Channel 12/24V 8A
