LinearFlow Facade RGBW

LinearFlow Facade RGBW

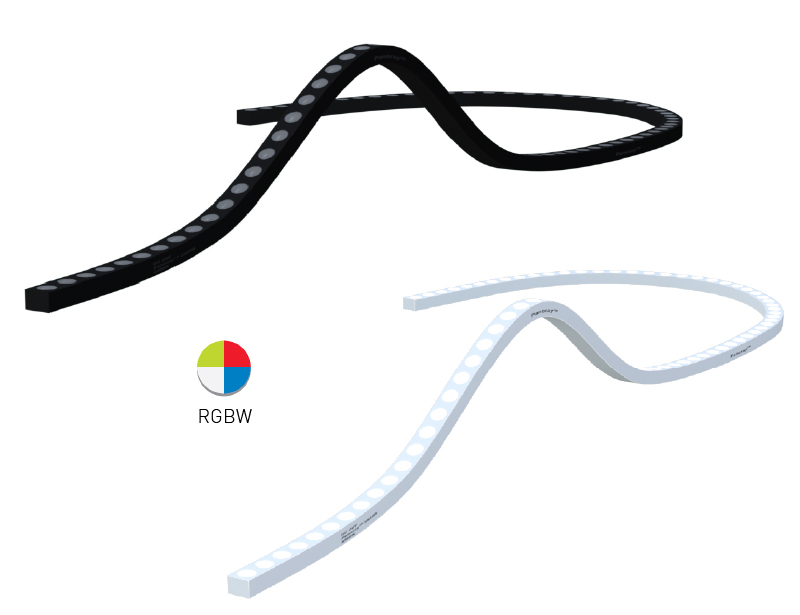

LINEARFLOW FACADE RGBW is a flexible, colour-changing linear lighting system featuring quad-chip RGBW LEDs within a specialist silicone housing. Individual lenses provide a focused beam, making it ideal for façade wall washing and architectural accent lighting.

The profile can be bent both vertically and horizontally to accommodate curved and complex architectural designs. Its high-performance silicone jacket offers excellent weatherproofing, UV resistance, and a wide operating temperature range, making it suitable for both interior and exterior applications.

Colour control is achieved via 4-channel PWM using any compatible DMX-512 controller. Integrated white LEDs, available in 2700K, 3000K, or 4000K, enable vibrant colours, subtle pastel tones, and refined architectural lighting effects.

Categories: , , , , , , , , , ,

Description

Features

  • Product Type: Dual Flexible 35 x 25mm Linear Light with RGBW LEDs
  • IP Rating: IP68, suitable to be fully submersible
  • Bending Orientations: Vertical and Horizontal
  • General Product Code: 71311x3x
  • Light Source: Epistar SMD 5050 LEDs
  • Colour Options (CCT): RGB + 3000K
  • Colour Rendering: 80+ CRI
  • LED Lifetime (LM-80): 50,000 Hours (70% Lumen Maintenance)
  • Luminous Output / Efficacy: Up to 840 lm/m : Up to 35 lm/W
  • Warranty: Silicone = 5 years
  • Resistant to: Solvents, UV and Heat
  • Jacket Material: Silicone
  • LED Power Available: 24W
  • Profile lengths: Custom lengths from 250mm to 2000mm
  • Minimum bending diameter: Vertical – 300mm, Horizontal – 800mm
  • Supply Voltage: 24Vdc Constant Voltage
  • Power Supply: Remote Constant Voltage Power Supply with Dimmer options
  • Mounting: Rigid and Single Flex Aluminium Channel and Dual Flex Silicone Channels

LinearFlow Facade

Downloads

Full Specification Sheet

Driver Sheet

LinearFlow Facade RGBW product codes

7120135* – [LED Colour Code] – [Honeycomb Louvre] – [Beam angle] – W – [Length Code] – [Wire Code]

71201359-RGB30-1-2040-W-0500-D0B0

LINEARFLOW FACADE RGBW IP68, Without Honeycomb Louvre, 20° x 40° Optic, White Silicone Outer Casing, Dual Bend, 24W/m LEDs, CRI 80+ RGB+3000K at 500mm Cut Length, Single Ended Wiring with Injection Moulded End Caps.

END1 = IP68 Injection Moulded End Feed Cap with 0.3m Cable
END2 = IP68 Injection Moulded Dead End Cap with NO Cable

Total Length (+ End Caps) = 500mm, Light Emitting Surface Length = 500mm (2 x 250mm LED Modules),
Strip wattage = 12W ( 2 x 6 Module Power), Strip output = Up to 420lm.

Principle variants, see Specification Sheets for full details.

ARTICLE NUMBERDESCRIPTION
71201359LinearFlow Facade RGBW LED, Silicone casing, Dual bend, 24W/m

Product parameter codes

Length Code[0250] to [2000] .
LED Colour Code80+ CRI 2700K-6500K [2765]
Beam Angle12° [12], 25° [25], 15°x25° [1525], 15°x40° [1540], 15°x60° [1560]
Jacket ColourWhite [W], Black [B]
Wire Codesee spec. sheet for details

Accessories codes

(See Product Specification Sheet for additional details)

Dual Bend Anole Channel712091*5-XXXX
*White = 6
Black = 7
Lengths Available 55/205/475/1000
Serrated Rigid Aluminium H36 Channel71209121-XXXX Lengths Available 35/500/1000/2000
Serrated Rigid Aluminium H50 Channel71209124-XXXX Lengths Available 35/500/1000/2000
Flexible Serrated Aluminium
Horizontal Bending		71209131-XXXX
Lengths Available 500/1000
Flexible Serrated Aluminium
Vertical Bending		1209133-XXXX
Lengths Available 500/1000
Adjustable Mounting Bracket71209130
Bendable Aluminium Glare Shield
Horizontal Bend		71209140-XXXX
Lengths Available 1000/2000

Driver codes

(Example list, see Driver Sheet for full detail including fitting loading)

273-858-040LED Constant Voltage Power Supply 24Vdc 40W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-080LED Constant Voltage Power Supply 24Vdc 80W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-100LED Constant Voltage Power Supply 24Vdc 100W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-150LED Constant Voltage Power Supply 24Vdc 150W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-240LED Constant Voltage Power Supply 24Vdc 240W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-848LED Single Channel Dimmer 6A 6-24Vdc, DMX / 0-10V / 1-10V, with DMX in & out, 10V In & out.
205-057Rotary Potentiometer for 1-10V Controllers
205-029OTDALI DIM LED PWM DALI Dimmer interface 5A 12/24Vdc 50/120W
273-606-1LED Constant Voltage DALI Dimmer Single Channel 12/24V 8A twin output
273-606-2LED Constant Voltage DMX Dimmer Single Channel 12/24V 8A twin output
273-606-3LED Constant Voltage Analogue (0-10V) Dimmer Single Channel 12/24V 8A twin output
273-607-1LED Constant Voltage DALI Dimmer Two Channel 12/24V 8A two output
273-607-2LED Constant Voltage DMX Dimmer Two Channel 12/24V 8A two output
273-550LED Constant Voltage DALI & DMX Dimmer Four Channel 12/24V 24A four output (6A per output)
205-074LED Constant Voltage DMX Dimmer Four Channel 12/24V 16A four output (4A per output)
273-604-1LED Constant Voltage Integrated 100W PSU & DALI/DMX Dimmer Four Channel 12/24V 8A
To find out more get in touch

LEDBar Installation

Name of Project: Natural History Museum

Location: SW1, London

Lighting Designer: DHA Designs

LEDBar Installation

Name of Project: The Great Tapestry

Location: Scotland
