LinearFlow InGround Dynamic White

LINEARFLOW INGROUND DYNAMIC WHITE is an innovative rigid in-ground lighting solution
with tunable white LEDs from 2200K to 5700K designed for high-traffic environments and areas
exposed to water. By seamlessly integrating an LED strip, continuous reinforced silicone diffuser cover and metal raceway profiles into a single system, it delivers exceptional durability, waterproof performance, and impact resistance.

Available in three channel options suitable for walk over to 30T driver over installations,
LINEARFLOW INGROUND can be specified with confidence for everything from pedestrian
walkways and plazas to roads, driveways, and other heavy-duty applications.

Description

Features

Product Type: Rigid Walk and Drive Over Linear Light with Dynamic White LEDs
IP Rating: IP68, suitable to be fully submersible
Bending Orientations: NA
General Product Code: 7130113x
Light Source:Epistar SMD 3015 LEDs
Colour Options (CCT): 2100K – 5500K
Colour Rendering: 80+ CRI
LED Lifetime (LM-80): 50,000 Hours (70% Lumen Maintenance)
Luminous Output / Efficacy: Up to 360 lm/m : Up to 30lm/W

Warranty: 5 years
Resistant to: Solvents, UV, Heat and Saltwater
Jacket Material: Silicone
LED Power Available: 12W
Mounting Profile lengths: 204mm, 504mm, 1004mm (Custom lengths available on request)
Supply Voltage: 24Vdc Constant Voltage
Power Supply: Remote Constant Voltage Power Supply with Dimmer options

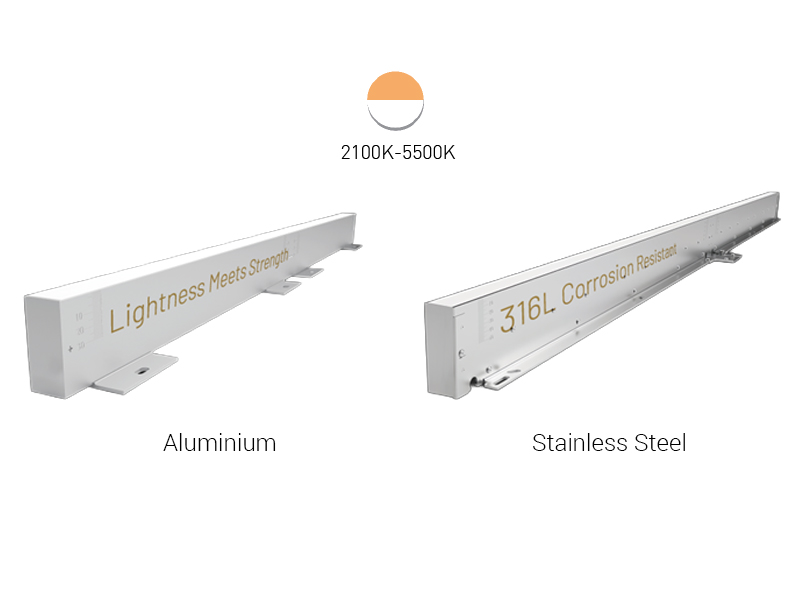

Mounting: Rigid Aluminium and Stainless Steel Channels

LinearFlow InGround

Downloads

Full Specification Sheet

Driver Sheet

LinearFlow Inground Dynamic White product codes

7130113* – [LED Colour Code] – W – [Length Code] – [Wire Code]

71301135-82155-W-0500-C0B0

LINEARFLOW INGROUND DYNAMIC WHITE IP68, White Silicone Outer Casing, 12W/m LEDs, CRI 80+ 2100K – 5500K at 500mm Cut Length, Single Ended Wiring with Injection Moulded End Caps.

END1 = IP68 Injection Moulded End Feed Cap with 0.3m Cable
END2 = IP68 Injection Moulded Dead End Cap with NO Cable

Total Length (+ End Caps) = 500mm, Light Emitting Surface Length = 500mm (6 x 55.6mm LED Modules),
Strip wattage = 6W (6 x 1 Module Power), Strip output = Up to 180lm.

Principle variants, see Specification Sheets for full details.

ARTICLE NUMBER	DESCRIPTION
71301135	LinearFlow Inground Dynamic White LED, Silicone casing, 12W/m

Product parameter codes

Length Code	[0084] to [10000] .
LED Colour Code	80+ CRI: 2100K -5500K [82155]
Wire Code	see spec. sheet for details

Accessories codes

(See Product Specification Sheet for additional details)

2mm stainless steel housing channel	71309210-XXXX Lengths Available 204/504/1004 Custom lengths available on special request
3mm stainless steel housing channel	71309310-XXXX Lengths Available 204/504/1004 Custom lengths available on special request
Aluminium housing channel	71309110-XXXX Lengths Available 204/504/1004 Custom lengths available on special request
Stainless steel housing silicone diffuser /m (Max 10m)	71309500-XXXX
Aluminium housing silicone diffuser /m (Max10m)	71309150-XXXX
Stainless steel housing protective pvc cover /m (Max 30m)(for installation only)	71309510-XXXX
Aluminium housing protective pvc cover /m (Max 30m) (for installation only)	71309151-XXXX
2mm stainless steel plain end cap	71309220
2mm stainless steel cable end cap	71309221
3mm stainless steel plain end cap	71309320
3mm stainless steel cable end cap	71309321
Aluminium housing plain end cap	71309120
Aluminium housing cable end cap	71309121
Stainless Steel Silicone Cover Locking bracket	71309222
Aluminium Silicone Cover Locking bracket	71309122
Stainless Steel Rubber Grommet	71309260
Aluminium Rubber Grommet	71309160

Driver codes

(Example list, see Driver Sheet for full detail including fitting loading)

273-858-040	LED Constant Voltage Power Supply 24Vdc 40W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-080	LED Constant Voltage Power Supply 24Vdc 80W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-100	LED Constant Voltage Power Supply 24Vdc 100W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-150	LED Constant Voltage Power Supply 24Vdc 150W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-858-240	LED Constant Voltage Power Supply 24Vdc 240W 100-305Vac 47-63 Hz. WIth 300mm input & output leads
273-848	LED Single Channel Dimmer 6A 6-24Vdc, DMX / 0-10V / 1-10V, with DMX in & out, 10V In & out.
205-057	Rotary Potentiometer for 1-10V Controllers
205-029	OTDALI DIM LED PWM DALI Dimmer interface 5A 12/24Vdc 50/120W
273-606-1	LED Constant Voltage DALI Dimmer Single Channel 12/24V 8A twin output
273-606-2	LED Constant Voltage DMX Dimmer Single Channel 12/24V 8A twin output
273-606-3	LED Constant Voltage Analogue (0-10V) Dimmer Single Channel 12/24V 8A twin output
273-607-1	LED Constant Voltage DALI Dimmer Two Channel 12/24V 8A two output
273-607-2	LED Constant Voltage DMX Dimmer Two Channel 12/24V 8A two output
273-550	LED Constant Voltage DALI & DMX Dimmer Four Channel 12/24V 24A four output (6A per output)
205-074	LED Constant Voltage DMX Dimmer Four Channel 12/24V 16A four output (4A per output)
273-604-1	LED Constant Voltage Integrated 100W PSU & DALI/DMX Dimmer Four Channel 12/24V 8A
